Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: CNC2-2016
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Driving Way: |
Dual Drive |
Machine Moving Speed: |
0-6000mm/min |
Motor And Cables: |
Step Motor Shield Cables |
Plasma Cutting Capacity: |
Depend On Plasma Source |
Effective Cutting Width: |
2000mm (Beam Length 2500mm) |
Effective Cutting Length: |
17000mm (Rail Way Length16000mm) |
Warranty: |
12 Month |
Driving Way: |
Dual Drive |
Machine Moving Speed: |
0-6000mm/min |
Motor And Cables: |
Step Motor Shield Cables |
Plasma Cutting Capacity: |
Depend On Plasma Source |
Effective Cutting Width: |
2000mm (Beam Length 2500mm) |
Effective Cutting Length: |
17000mm (Rail Way Length16000mm) |
Warranty: |
12 Month |

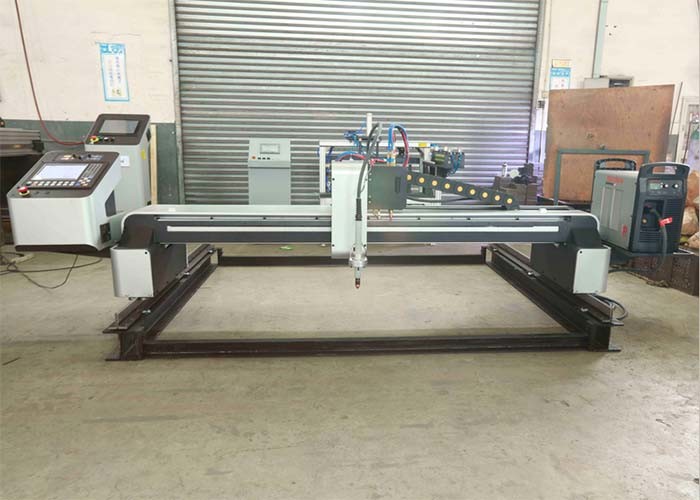

Economical CNC Plasma High Efficiency Metal Plate Cutting Machine with FastCAM Software
FastCAM software:
1. FastCAM software has four modules for CNC cutting.
FastCAM drawing module:
1) Draw: similar with CAD, to draw all kinds of parts
2) CAD compatible and Optimizer: to read in and optimize DXF/DWG files by delete, compress, extract, explode
3) Cutting functions: Kerf compensation, plasma bridge, common line cutting, corners, CAD layers, word label
FastNEST automatic nesting module:
1) Manual nesting, easy & convenient to use
2) Automatic nesting in a row or in a matrix
3) Full automatic nesting
4) Interactive nesting by auto and manual nesting
5) Common cut & continue cut to reduce pre-pierce
6) Remnant nesting for irregular remnant or parts
FastPATH automatic pathing module:
1) Programming: automatic & manual pathing include marking, path optimizer, multi-layer cutting
2) Support multiple CNC control, ESSI&EIA G/M code
3) Support Kerfs comp., pre-pierce, stitch& tag cutting
FastPLOT verification module:
1) NC Verification: automatic & manual simulation, dimension and kerf compensation verification
2) Costing: utilization, cut length, pierce & cutting cost
3) Transfer NC files to CAM/DXF/DWG files
2. FastCAM Support: Windows98/2000/NT/XP/vista.
3. FastCAM Multi-languages: Chinese/ English/ German/ Spanish/Polish/Korea/Czech/Russian etc.
CNC controller system function:
1. Full Chinese/English menu system, one-key switch between Chinese and English;
2. 45 common graphics libraries (including grid graphics), you can choose to set the tile size and hole size;
3. Support EIA code (G code) and FastCAM, FreeCAM, Wentai, PM2000 and other nesting software;
4. Graphic scale, rotation, mirroring, matrix arrangement, staggered arrangement, repeated arrangement;
5. Graphic steel plate correction;
6. Customizable coordinate system, supporting all eight possibilities of two-dimensional coordinates;
7. Can customize the type of all input and output ports (normally open or normally closed) and number;
8. It can automatically diagnose all IO status and button status of the system, which is convenient for checking and troubleshooting.
9. You can import the export file individually or completely;
10. Parameter backup and online upgrade;
11. Supports 4 modes of oxygen gas, plasma, dusting and demonstration;
12. All kinds of processing parameters are complete, which can meet different process requirements;
13. Oxygen gas and plasma IO are separately controlled;
14. Plasma arc pressure feedback, positioning feedback, the angle automatically turns off the arc voltage to increase the height to prevent the gun;
15. Support edge cutting, offset cutting;
Machine condition requirement:
|
Voltage requirement: |
(1) 3×380v±10%/50Hz,220v±10%/50Hz. (2) Three-phase voltage stability less than ±5%. (3) Three-phase voltage unbalance less than 2.5%. (4) Suggested using voltage-stabilized source. Note: Grounding resistance ≤10. |
|
Compress air pressure requirement (Plasma cutting): |
(1) Gas flew requirement:0.9m3/min (2) Gas pressure:8.3kg/cm2 (3) Dew-point temperature not exceed 5 centigrade: oil content≤0.003ppm solid particle≤0.01micron (4) Suggested using oil free air compressor, freezing dryer and ultra filter (system cannot have rust components). |
|
Working temperature: |
-10°C -45°C |
|
Humidity: |
<90%, no condensation |
|
Surroundings: |
Ventilation, no big shake |
| Cutting pipe must be smooth surface oval-shaped deviation less than 5mm diameter. Reach ISO standard. | |
Machine details:
Cutting samples:
