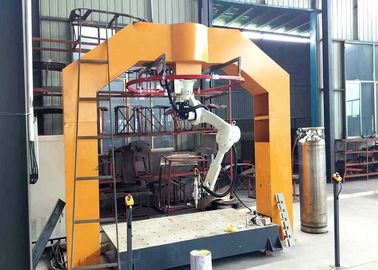

RWS Series 3D Robotics cutting Station with Fiber Laser Cutting

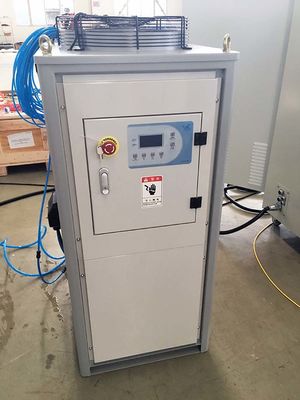

Automatic robotics cutting station is consisted of robot arm, robot controller and laser cutting source. The robot is made up of robot body and controller (hardware and software). While for the cutting source, it is generally include laser cutting source, laser cutting torch(clamp), water chiller, etc.
3D fiber laser cutting robot
3-Dimensional fiber laser cutting robot is an advanced laser cutting device which processes flexible cutting for metal plates multi-dimensionally and multi-directionally with the adoption of specialized fiber laser cutting head, high precision capacitive tracking system, fiber laser module and industrial robotic system. Utilizing the performance of robot’s flexibility and swiftness .besides according to different workpiece’s size, it can do three dimensional cutting to irregular workpieces by fiber laser cutting head through formal and inverse installation of robot. It also requires teaching programming or offline programming according to different products and various tracks. Under the utilization of transferring fiber laser to cutting head(fiber laser cutting head is equipped with specialized fiber auto-following device and light path transferring device), and focal system, the machine can achieve three dimensional metal plates’ cutting multi-directionally.
According to thicknesses of the metal plates, the choice of fiber power is also different. Different cooling systems are also equipped with laser module of different power to assure the laser module’s normal work. In order to meet customer’s cutting requirements, meantime we need to choose fiber laser with suitable length according to the working semi-diameter of robotic arm and the workpieces’size.
Features:
1. The best combination of sophisticated technique and digital control technology represents the most advanced laser cutting level.
2. The machinery construction are adopted imported manipulator and six axis linkage, and integrate laser beam guidance equipment into robot arm. The combination of stable laser beam and moving robot arm can realize production of any or specific curve in three-dimensional space. Therefore, the convenient operation, high intelligence and greatly reduce the cycle time, and can ensure its high moving speed, high accuracy and high reliability.
3. Equipped with professional moving control system can make sure that the cutting effect and stable moving, all this make cutting more convenient and easy operation.
4. Imported higher precision laser cutting head,quick-response,cutting precision.Cooperate with cnc hand efficiently,avoiding crashing between laser head and working material,as well as assuring the cutting spot to obtain stable cutting quality.
5. The combination of industrial robot and fiber laser,ensure the complete working process.Tidiness cutting slide,without re-treatment.Greatly shorten the working process, reduce the labor mold costs, and also improve the product grade and added value;
6. The laser head can sustain 1.0Mpa gas pressure.High pressure pneumatic equipment improves the cutting ability of difficult cutting material such as stainless steel.
7. Using industrial robots greatly reduces the system cost, reduces the cost of power system and system maintained, reduces the system space.
Application:
Available for metal materials such as atainless steel, carbon steel, silicon steel and titanium alloy, alwanys in three-dimentional cutting field. Widely used in various manufacturing industries, such as the automobile manufacturing, mold manufacturing, medical equipment, shipbuliding, aviation, hardware,decoration, metal proceesing service to foreign and others.
Laser Source:
China Raycus or Germany IPG laser source
Comparison between Five axis laser cutting machine and laser cutting robot
Project
|
Five axis machine tool+ CO2 laser
|
industrial robot+ fiber laser
|
Working Speed
|
Different speed according to work piece materials, work piece thickness and laser power
|
Different speed according to work piece materials, work piece thickness and laser power. Such as cutting 1.5MM carbon steel with 200w laser, speed is almost 5m/min.
|
Laser Maintenance Charge
|
InflationHe,Ne,CO2.etc, total 30 RMB/Hour
|
No need air inflation, life for 100,000 hours.
|
System Power Consumption
|
About 30KW
|
Within 6KW
|
Cooling Type
|
Water Cooling, Large Volume
|
Below 400W is air cooling, above 400W is water cooling, small volume
|
System Floor Space
|
50-100m2
|
Within 10m2
|
Auxiliary Oxygen Cost
|
Different according to work piece materials, work piece thickness
|
Such as within 2mm carbon steel, O2 dosage is about 15 RMB/hour
|
Off-line Programming Software
|
OK
|
OK
|
Repeated Positioning Accuracy
|
Within 50um
|
Within 100um
|
Processing Range
|
Metal and Non-metal
|
Metal
|
