Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-30-1000W
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Length: |
3000mm Or 6000mm Or 12000mm |
Laser Type: |
Fiber Laser Cutting |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 10mm |
Laser Power: |
1000W |
Cooling Mode: |
Water Cooling |
Color: |
Blue+yellow, Red+black,or Customized |
Warranty: |
1 Year |
Effective Cutting Length: |
3000mm Or 6000mm Or 12000mm |
Laser Type: |
Fiber Laser Cutting |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 10mm |
Laser Power: |
1000W |
Cooling Mode: |
Water Cooling |
Color: |
Blue+yellow, Red+black,or Customized |
Warranty: |
1 Year |

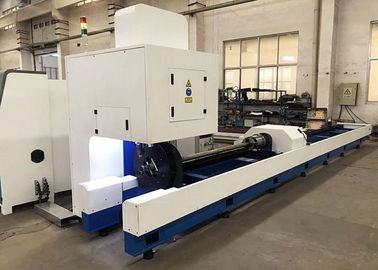

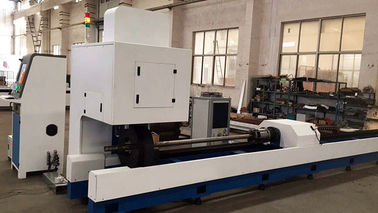

FL-30-1000W Tube Fiber Laser Cutting Machine
FL-30-1000W tube laser fiber cutting machine germany quality is professional tube cutting fiber laser machine, suitable for all kinds of stainless tube, round tube, square tube and oval tube. Improve the quality of tube cutting products, make cutting become simple.
Features:
1. The whole structure is welded, stable performance, to ensure the stable operation.
2. With 650 degree high temperature heat treatment working bed and a large milling machine high precision machining to ensure the stability and smoothness of the working bed.
3. Operation system, easy control system, easy to learn and operating.
4. High quality, high efficiency fiber laser generator, low processing cost, saving help energy conservation and environmental protection.

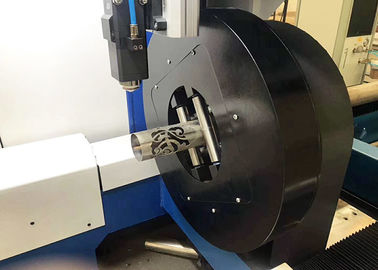

5. Automatic chuck the front and bottom, easy to feeding, designed for saving material.
6. Equipped with servo system from Japan, gear rack movement structure using, to ensure the high speed, high precision, high reliability.
7. New beautiful designed, fully enclosed protective cover.
Main Components:
Technical Parameters:
| Laser Power | 500W | 700W | 1000W |
| Laser Wave | 1070nm | 1070nm | 1070nm |
| Pipe Cutting Length | ≤3000mm | ≤3000mm | ≤3000mm |
| Round Pipe Diameter | 20-200mm | 20-200mm | 20-200mm |
| Square Tube Side | less than 160mm | less than 160mm | less than 160mm |
| Pipe Thickness | 6mm | 8mm | 10mm |
| Laser Line Width | 0.15mm | 0.15mm | 0.15mm |
| Location Precision | ±0.03mm/m | ±0.03mm/m | ±0.03mm/m |
| Re-location Precision | ±0.02mm | ±0.02mm | ±0.02mm |
| Power | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Cooling | Water cooling | Water cooling | Water cooling |
Cutting Parameters:
FAQ:
Q: I know nothing about the laser cutting machine, what kind of machine I should choose?
A: Just tell us what you want to cut by this machine, the materials, size and thickness. Then we will send you a perfect solutions and suggestions.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. So please don’t worry, you will receive the parcel in good condition.
