Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: FL-3015-1000W
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 1 x 20' GP
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Effective Cutting Size: |
1500X3000mm |
Table Type: |
Auotomatic Exchange Table |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 10mm |
Cooling Mode: |
Water Cooling |
Laser Type: |
Fiber Laser |
Effective Cutting Size: |
1500X3000mm |
Table Type: |
Auotomatic Exchange Table |
Cutting Material: |
Metal, Steel, Aluminum, Etc. |
Cutting Thickness: |
Max 10mm |
Cooling Mode: |
Water Cooling |
Laser Type: |
Fiber Laser |

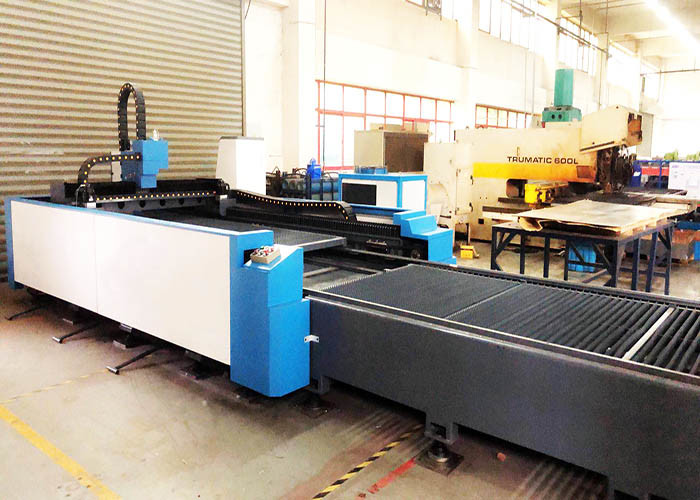

FL-3015-1000W Fiber Laser Cutting Machine with Auto Exchange Table
Appicable Industries:
Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries;
Applicable materials:
Specialized fast speed cutting of a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.
Advantage:
1) Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2) High cutting speed: Cutting speed is more than 100m/min.
3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours.
4) High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency.
5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost.
6) Easy operations: fiber line transmission, no adjustment of optical path.
7) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.
Technical Parameters:
| Item | FL-3015-1000W |
| Working area (L*W) | 3000×1500mm |
| X-axis running area | 1500mm |
| Y-axis running area | 3000mm |
| Z-axis running area | 120mm/ 260mm for two tables |
| X/Y axis Repeated Positioning Precision | ±0.05mm |
| Max. Running Speed | 120m/min |
| Max. accelerated speed | 1.2G |
| Machine weight | 8000Kg |
| Max. load on working table | 900kg |
| Phase | Triphase |
| Voltage | 380V |
| Frequency | 50Hz/ 60Hz |
Max Cutting Thickness:
| Items | IPG 1000W |
| Stainless steel (N2) | 6mm |
| Carbon steel (O2) | 12mm |
| Aluminum (N2) | 3mm |
| Brass (N2) | 3mm |
| Copper (O2) | 2mm |
Main Components:
Cutting Samples:
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
