Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: RCS-series
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Voltage: |
380V,3PH,50HZ Or Customerized |
Robot Brand: |
Japan Kawasaki |
Plasma Source: |
USA Hypertherm Or Thermadyne |
Tooling: |
Customized |
Color: |
White + Red Or Customized |
Warranty: |
1 Year |
Voltage: |
380V,3PH,50HZ Or Customerized |
Robot Brand: |
Japan Kawasaki |
Plasma Source: |
USA Hypertherm Or Thermadyne |
Tooling: |
Customized |
Color: |
White + Red Or Customized |
Warranty: |
1 Year |

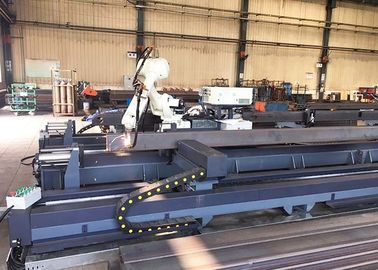

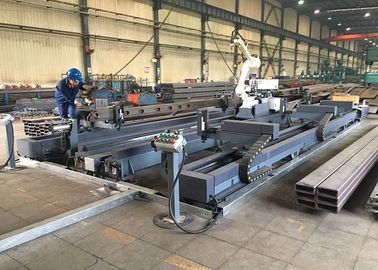

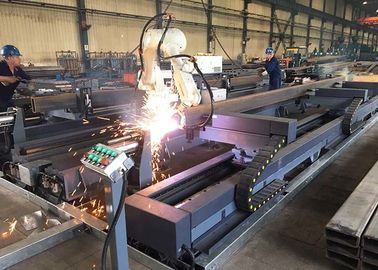

RCS Series Robotics Plasma Cutting Station
1. Good processing adaptability and mobility
The cutting robot has 6 degrees of freedom to meet any position and attitude requirements of the cutting head in three dimensions, thus completing the cutting tasks for the specific needs of the area within which the robot arm can reach. The cutting robot base is mounted on the moving mechanism to increase the cutting work space.
2. Easy to achieve integrated automatic processing
The cutting robot has the characteristics of small footprint and flexible movement. Different cutting process methods are adopted. This robot integrated automatic processing method can greatly simplify the traditional processing process, improve production efficiency, and reduce the investment of automation equipment and occupied space.
3. The most flexible processing features
Since the robotic cutting machine uses a flexible design, machining program and method, it can be easily moved to another working unit in addition to cutting various types of parts in the same working unit. Perform new cutting tasks that are unmatched by other automated cutting equipment.
4. Plasma speed is fast and low cost
Air plasma has a higher cutting speed than oxyacetylene gas cutting speed, and plasma only needs to compress air during cutting, so plasma cutting cost is low. It saves a lot of labor costs and reduces the labor of the staff. The imported robot from Japan Kawasaki Heavy Industries has good maneuverability and excellent quality. Can adapt to work all day long.
5. Well formation
The robot plasma cutting adopts USA Hypertherm MAXPRO200 plasma power supply, the cutting surface is smooth, and the lower edge of the incision is not sticky. When the cutting surface of the workpiece is polished and beveled by the cutter in the later stage, the damage to the cutting tool can be effectively reduced, and the cutting deformation is small, High precision.
Japan Kawasaki BA020N Robot
Payload: 20kg
Axes: 6
Reach: 1725mm
Repeatability: ±0.04mm
Application:
Cutting
| Item | Description of Item | Quantity | Remark | |
| 1 | Robotic automation system | |||
| Kawasaki robot RA20N | 1 | Kawasaki | ||
| Plasma cutting torch | 1 | USA Hypertherm | ||
| Anti-collision CAT2 | 1 | Binzell | ||
| Robot control cabinet | 1 | Kawasaki | ||
| Robot transformer, robot base | 1 | Metalwork | ||
| Cutting torch clamping | 1 | Metalwork | ||
| 2 | Cutting power system | |||
| Hypertherm MAXPRO200 plasma source | 1 | USA Hypertherm | ||
| Power wire and control wire | 1 | Metalwork | ||
| 3 | Cutting table (14 m length) | 1 | Metalwork | |
| 4 | Fixture | 1 | Metalwork | |
| 5 | Coordinated walking mechanism (14m) | 1 | Metalwork | |
| 6 | Electronic control part | 1 | Metalwork | |
| 7 | Robot software, electrical part | 1 | Metalwork | |
Note: the equipment uses Hypertherm 200 power supply, which is only suitable for single-station cutting, and a set of cutting tables with a set of walking robot rails.
Overall structure:
Schematic diagram of the workstation layout
(The schematic diagram is only for illustrative purposes, not as the final delivery basis)
