Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: DTW-series
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywooden box
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Voltage: |
380V,3PH,50HZ Or Customerized |
Welding Source Brand: |
Panasonic KR-500 |
Angle Welding Swing Device: |
QB-6005 |
Welding Process: |
MIG Welding |
Current: |
500A |
Warranty: |
1 Year |
Voltage: |
380V,3PH,50HZ Or Customerized |
Welding Source Brand: |
Panasonic KR-500 |
Angle Welding Swing Device: |
QB-6005 |
Welding Process: |
MIG Welding |
Current: |
500A |
Warranty: |
1 Year |

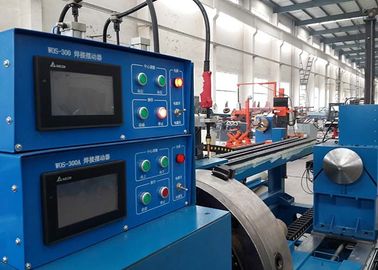

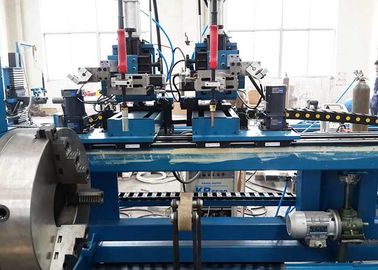

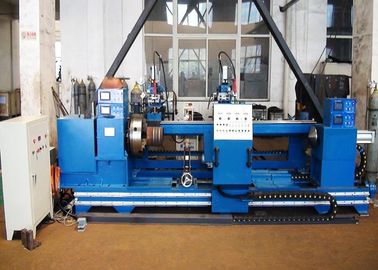

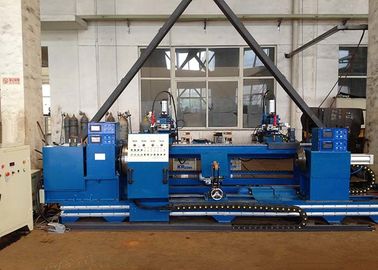

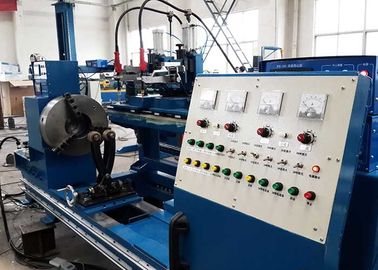

Automatic Double Torch Circular Seam Welding Machine
Workpiece:
Industrial tubular shell and tube type heat exchanger
Joint Welding tank or longitudinal and circular seam welding for tank and flange or angle welding, etc.
Workpiece material: Mild steel
Tank Diameter: 80-500mm
Tank Length: 300-1500mm
PlateThickness: 4-12mm
Description:
Workpiece placement: welding gun is fixed and the workpiece turns.
Welding process: the welding machine (CO2/MAG/MIG welding machine), welding swing device and gas shielded welding gun are composed of a set of automatic gas protection welding system, which is mainly applicable to carbon steel.
Advanced PLC control system, humanized man-machine interface, high degree of automation, stable and reliable performance.
The welding system USES 500A gas to protect the welding power, the welding gun USES 500A straight handle gas shielded welding gun.
Main Technical Parameter:
| Control Power | 3Ph 50Hz AC 380V |
| Welding Power | 3Ph 50Hz AC 380V |
| Workpiece Thickness | 4～12mm |
| Workpiece Welding Seam Diameter | DN500mm≥φ≥DN80mm |
| Workpiece Length | ≤1500mm |
| Machine Head Rotate Speed | 0.25～2.3 r/ min |
| The Rotation Diameter of The Workpiece | φ≤600mm |
| The Weight of The Load Workpiece | ≤250Kg |
| Pneumatic Back and Forth of Welding Torch | 250mm |
| Pneumatic Lifting Stroke of Welding Torch | 100mm |
| Pneumatic Tail Seat Stroke | 150mm |
| Maximum Allowable Welding Current | 800A |
Sketch Diagram:
Workpiece Photos:
