Cantilever Type Custom Made Machines Resistance Roller Seam With Single Wheel

Special Automatic Cantilevery Type Resistance Roller Seam Welding Machine with Single Wheel

1. Low Power Consumption
2. Water Cooling
3. Easy To Operate and Maintenance

Applications:

Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.

Features:

•  Complete machine structure is Stable.

•  Bottom arm can be metal arm or copper arm according to customer’s tank diameter.

•  Adopt stepless adjustment speed drive of three-phase, it is easy to adjust the welding speed steadily.

•  All of the circuit of welder adopt the type of internal cooling, and the welding wheel adopts the type of external cooling.

•  The active drive can be chosen upper or lower electrode, it is convenience for user to operate.

•  The main circuit adopts water cooling and high power SCR, quality is reliable, current output is stable.

•  Welding machine types: longitudinal welding.

•  According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.

•  The main transformer adopts high-quality silicon steel sheet and compelling water cooling system, featured of high output power and low consumption.

•  High-quality cylinders and pneumatic components guarantee the reliable and stable running of pneumatic system.

•  It is suitable for lap seam welding welding of low carbon steel, stainless steel, alloy steel, etc.

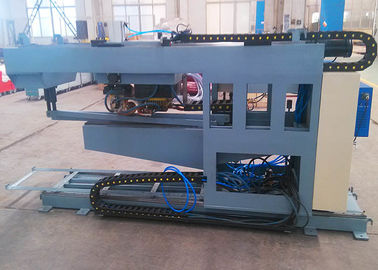

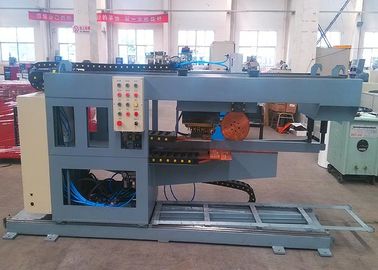

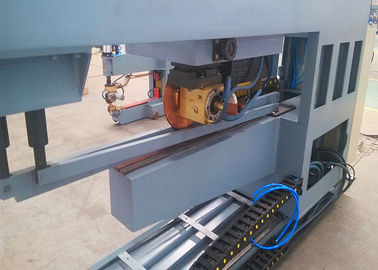

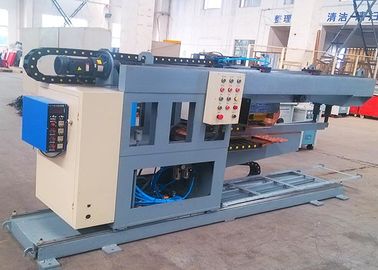

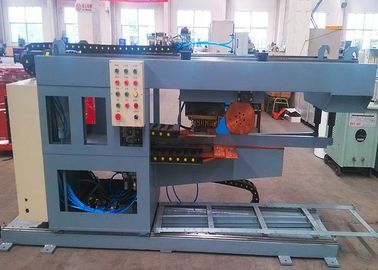

Machine Details:

Technical Parameters:
