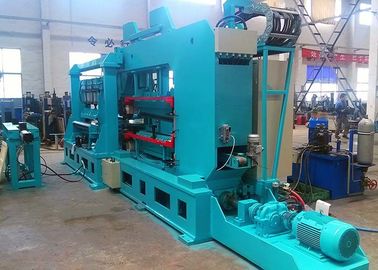

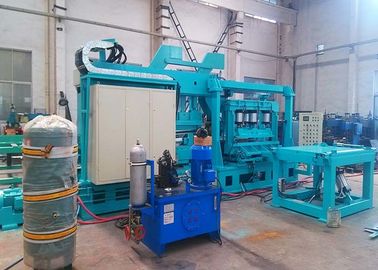

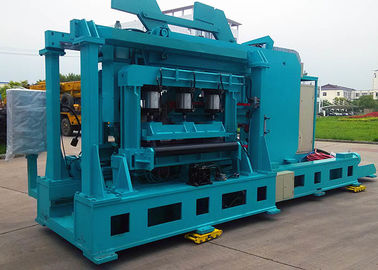

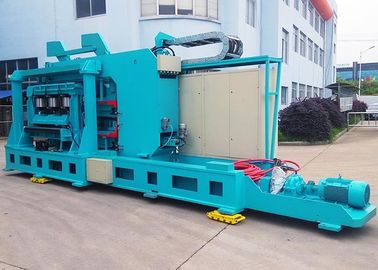

Steel Belt Narrow Overlap Seam Welding Machine for Steel Belt
Features:
Applications:
Widely used for over lap seam welding for steel belts of mild steel, alloy steel and stainless steel.
Technical Parameters:
| Model | FNY-200C |
| Welding Material | Low carbon sheet |
| Steel (Workpiece) Thickness | 0.16-0.8mm |
| Steel (Workpiece) Width | 650-1250mm |
| Overlap Thickness | 0-6mm (adjustable) |
| Punching Diameter | Ø28mm |
| Welding Speed | 0.6-6m/min |
| Return Speed | Max 8m/min |
| Welding Pressure | Max 7.36KN (P=0.6Mpa) |
| Electrode Pressure | Max 4.5KN |
| Roll Pressure | Max 29.45KN |
| Clamp Clamping Force | Max 36KN |
| Shear Angle | Max 2° |
| Shear Force | Max 160KN |
| Electrode Wheel Diameter | Min 240mm, max 280mm |
| Electrode Wheel Width | 12.5mm |
| Top Electrode Wheel Stroke | 120mm |
| Distance between the Entrance Port Clamp | 100mm |
| Distance between the Exit Port Clamp | 25mm |
| Migration Length of the Entrance Clamp | 105mm |
| Top Electrode Wheel Stroke | 210mm |
| Bottom Scissor Lifting Stroke | 50mm |
| Distance between Double Scissors | 100mm |
| Movement of C-Frame | Max 2400mm |
| Running Centre Height of Steel Belt | 1050mm |
| Export Roller Diameter | Ø120mm |
| Power of Welding Transformer | 200KVA (50% of the working system) |
| Rated Input Current of Welding Transformer | 525A |
| Duty Cycle for Welding Transformer | 50% |
| Welding Power | Single Phase, 380V AC |
| Control Power | Three Phases, 380V AC |
| Working Pressure for Hydraulic Station | Max 8.5Mpa |
| Compressed Air Pressure | 0.5Mpa-0.8Mpa |
| Compressed Air Flow | 400L/min |
| Cooling Water ( Recycling Distilled water) Pressure | 0.2-0.3Mpa |
| Cooling Water Flow | 2.5m3/h |
