Product Details
Place of Origin: China
Brand Name: Metalwork
Certification: CE, ISO, CCC
Model Number: ET-5X1250
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Simple packing
Delivery Time: 40 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month
Voltage: |
380V,3PH,50HZ Or Customerized |
Material: |
Q235 Or Q345 Mild Steel |
Max. Cutting Thickness: |
2.5~5mm |
Max Plate Width: |
1250mm |
Usage: |
Light Pole Production |
Power: |
8KW |
Voltage: |
380V,3PH,50HZ Or Customerized |
Material: |
Q235 Or Q345 Mild Steel |
Max. Cutting Thickness: |
2.5~5mm |
Max Plate Width: |
1250mm |
Usage: |
Light Pole Production |
Power: |
8KW |

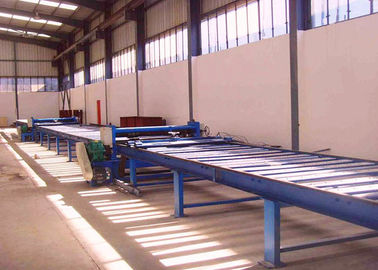

STEEL PLATE SLITTING MACHINE, MODEL: ET 5x1250 (For light pole edge and taper steel plate cutting)
The light pole plate slitting machine is base on the rolling shearing principle.
There are two precess step on the machine:

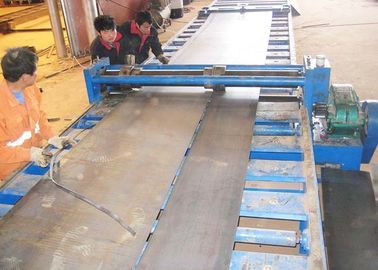

First step is to cut the scrap edge of the hot rolled steel to get the exact width and good edge which is good for light pole seam welding process.
There is a dolly in the front of the slitting unit. it is for control the straight cutting.
Second step is to cutting the light pole taper steel and get one side big one side small width steel plate.
There is a dolly in the front of the slitting unit. it is for control the taper cutting degree. Through changing the base position on dolly to change the taper degree.
Technical Parameter and Composed Devices:
| Name | Unit | Value |
| Max. Cutting Thickness | Mm | 2.5~5 |
| Max.plate width | Mm | 1250 |
| Max. inner Width of double slitting unit | Mm | 1250 |
| Max. inner Width of taper slitting unit | Mm | 1800 |
| Max. Cutting Length | Mm |
14000 (according requirments) |
| Slitting speed | m/min. | 12 |
| Power of the motor | Kw | 4+4 |
| Overall size |
40x3m( for 12m light pole) 46x3m( for 14m light pole) |
|
Supply Scope:
| Name | Quantity |

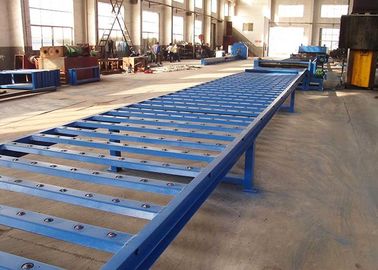

| Support table (length according requirements) | 1 |
| Dolly for control slitting straight | 1 |
| Double Slitting unit | 1 |
| Support table (length according requirements) | 1 |
| Dolly for control taper slitting angle | 1 |
| Slitting unit | 1 |

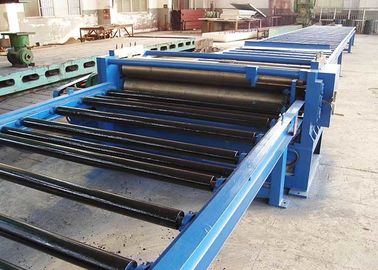

| Ball type support table (length according requirements) | 1 |
