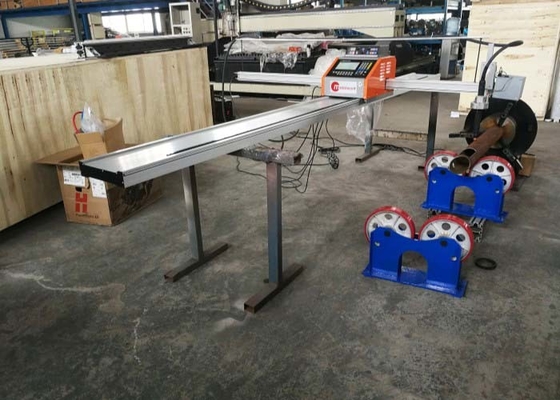

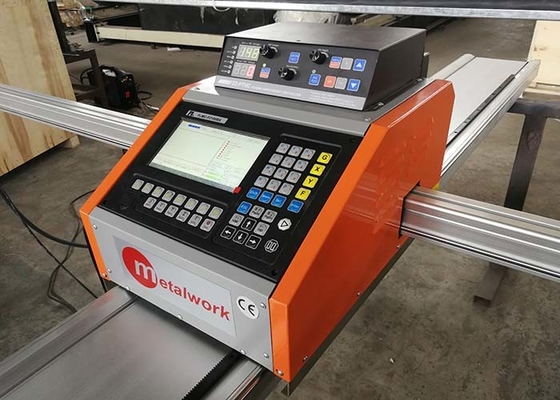

CNC1-1530P Light Pole Door Plasma Cutting Machine
This machine can cut both steel plate for the base plate of the pole and electric door of the pole.
Application Scope and Material:
1) The machine is mainly used for a variety of pipe system and the end of the hot cutting.
2) Applicable workpiece material: low carbon steel, copper and nickel pipe stainless steel pipe with plasma cutting.
3) Also can cut steel plate (cut the base plate of the pole) (CNC flame/plasma cutting machine), complete the implementation of the flame, plasma steel plate cutting, pole cutting machine, multi-usage.
4) It is suitable for conical, octagonal light pole door CNC cutting, Also it can cut round pipe. The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by PC.
5) The cutting power is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is better than flame cutting.
Machine working conditions:
Temperature: - 5-40 ℃;Humidity of 90% or less;50 hz power: 220 v + 10%
Technical Parameters:
| Code | ITEM | DATAS |
| 1 | Tube diameter | Φ=40～400mm |
| 2 | Flame cutting wall thickness | δ1=6～50mm |
| 3 | Max.pole length . | L1=14000mm (can be extended) |
| 4 | Plasma cutting thickness | 1-14mm |
| 5 | Moving speed. | V0=10～3000 mm/min |
| 6 | Cutting plate size | 1000mmX3000mm |

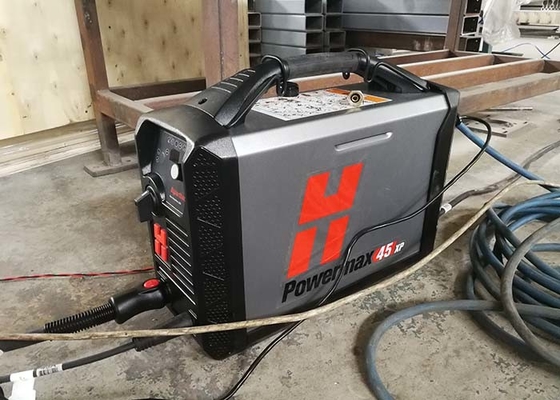

| 7 | Plasma power | USA.Hypertherm. Powermax.45 |
| 8 | Size of chuck | 250 type chuck with three claws |
| 9 | Motor of chuck | Panasonic 400W servo motor |

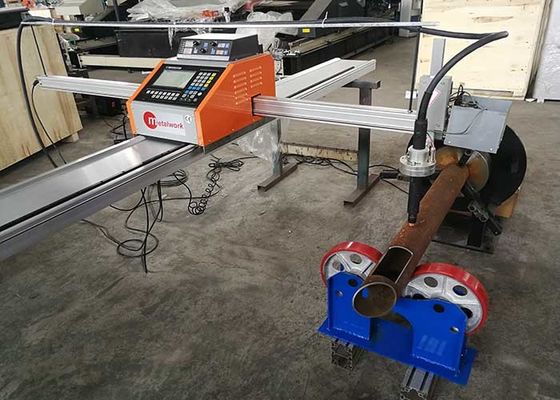

Movement axis:
| Movement axis | Cutting machine axis |
| X axis: | Pole rotate |
| Y axis: | Cutting torch move on the pole line direction. |
| Z axis: | Cutting torch lift up and down. |

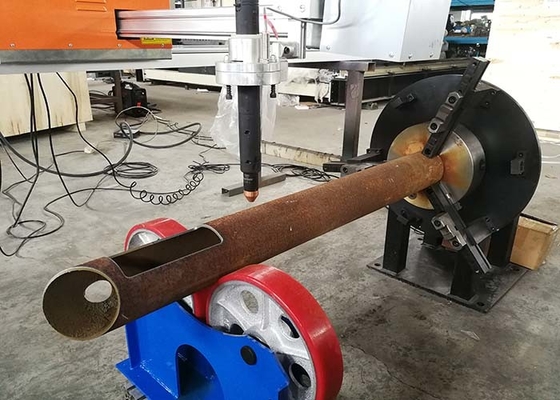

Cutting machine steel pipe transmission form and cutting way:
1) Cutting machine steel pipe transmission form: chuck type structure.
2) Cutting way: a plasma cutting.
3) Raise way: automatic electric way.
Cutting Samples:
